СКУ: C63W36M500

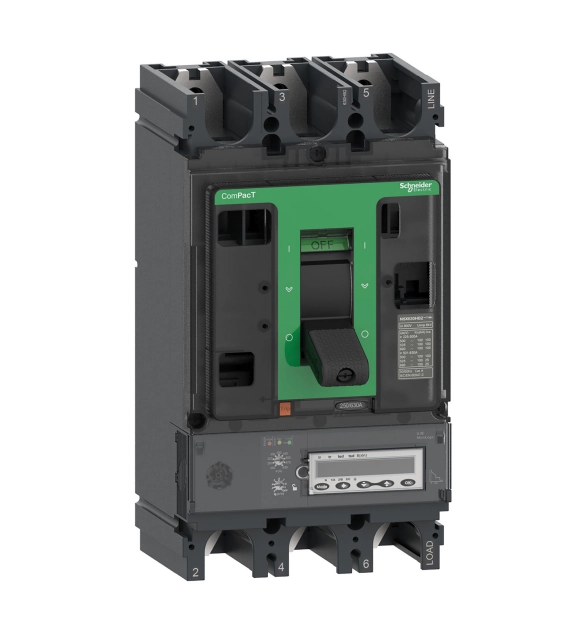

Автоматичен прекъсвач, ComPacT NSX630HB2, 100kA/690VAC, 3 полюса, MicroLogic 6.3E-M изключвателно устройство 500A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Width
140
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
500
-
With integrated under voltage release
FALSE
-
Type of control element
EV000154
-
Depth
110
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
With thermal protection
TRUE
-
Switch off technique
EV000101
-
Height
255
-
Overload release current setting
250
-
Adjustment range undelayed short-circuit release
6500
This ComPacT NSX630HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 500A rating electronic MicroLogic 6.3 E-M trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. MicroLogic 6.3 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630HB2 is part of Schneider Electric EcoStruxure Power architecture.
