СКУ: C63F4TM500D

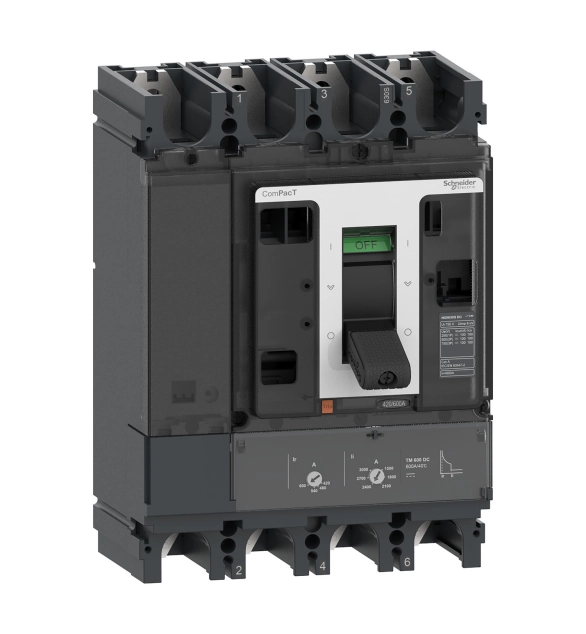

Автоматичен прекъсвач, ComPacT NSX630F DC, 36kA/750VDC, 4 полюса, TM-DC изключвателно устройство 500A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Number of poles
4
-
Rated permanent current Iu
500
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Rated voltage
750
-
Degree of protection (IP)
EV006414
-
Complete device with protection unit
TRUE
-
Adjustment range undelayed short-circuit release
1250
-
Overload release current setting
350
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
ComPacT NSX 500F DC is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 500A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. The dimension is 255mm x 185mm x 110mm (H x W x D). It is compliant with international standard EN/IEC 60947.
