Автоматичен прекъсвач, ComPacT NSX400R, 200kA/415VAC, 4 полюса, MicroLogic 5.3E изключвателно устройство 400A | Spark & Co
  • 3D
|

СКУ: C40R45E400

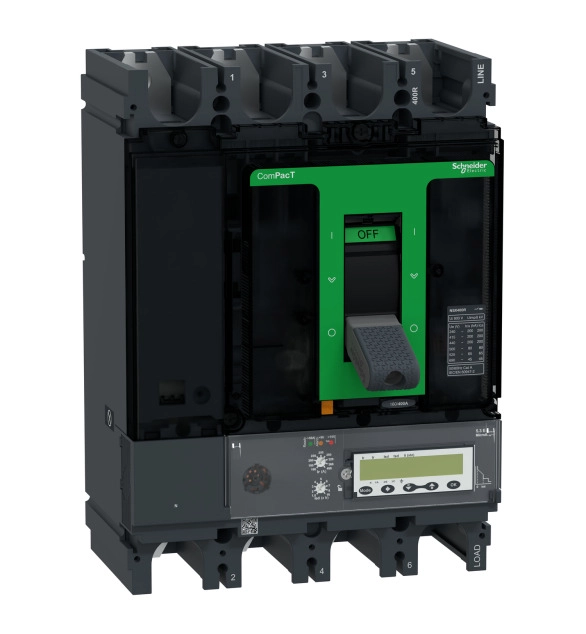

Автоматичен прекъсвач, ComPacT NSX400R, 200kA/415VAC, 4 полюса, MicroLogic 5.3E изключвателно устройство 400A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    400
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    200
  • Complete device with protection unit
    TRUE
  • Overload release current setting
    160
  • Adjustment range undelayed short-circuit release
    600
  • Adjustment range short-term delayed short-circuit release
    240
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact

This ComPacT NSX400R is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 5.3 E trip unit, with 400A rating. MicroLogic 5.3 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 5.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400R is part of Schneider Electric EcoStruxure Power architecture.
