Автоматичен прекъсвач, ComPacT NSX400HB2, 100kA/690VAC, 3 полюса, MicroLogic 5.3E изключвателно устройство 400A | Spark & Co
  • 3D
|

СКУ: C40W35E400

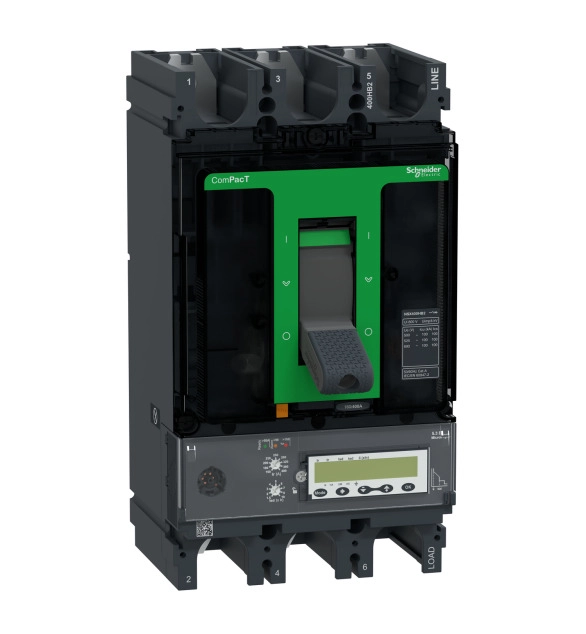

Автоматичен прекъсвач, ComPacT NSX400HB2, 100kA/690VAC, 3 полюса, MicroLogic 5.3E изключвателно устройство 400A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    400
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Complete device with protection unit
    TRUE
  • Overload release current setting
    160
  • Adjustment range undelayed short-circuit release
    600
  • Integrated earth fault protection
    TRUE
  • Adjustment range short-term delayed short-circuit release
    240

This ComPacT NSX400HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 320A rating electronic MicroLogic 6.3 E-M trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. MicroLogic 6.3 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture.
