СКУ: C40W32D400

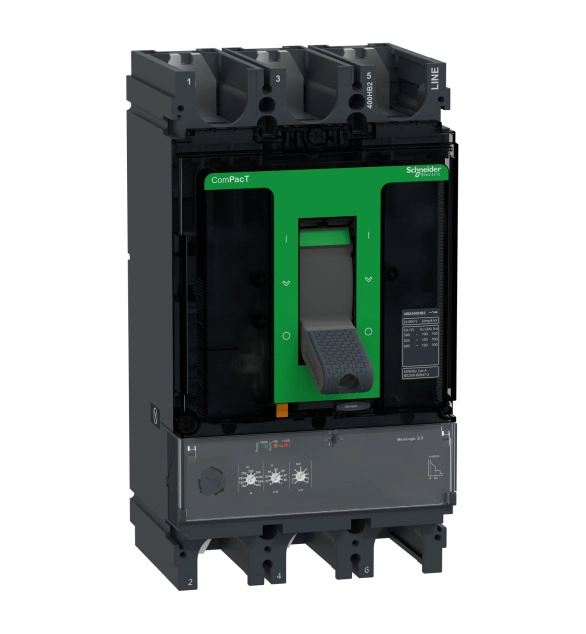

Автоматичен прекъсвач, ComPacT NSX400HB2, 100kA/690VAC, 3 полюса, MicroLogic 2.3 изключвателно устройство 400A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Width
140
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
320
-
With integrated under voltage release
FALSE
-
Type of control element
EV000154
-
Depth
110
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
With thermal protection
TRUE
-
Switch off technique
EV000101
-
Height
255
-
Overload release current setting
160
-
Adjustment range undelayed short-circuit release
4800
This ComPacT NSX400HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 1.3 M trip unit, with 320A rating. MicroLogic 1.3 M trip unit provides an adjustable short time protection and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture.
