Автоматичен прекъсвач, ComPacT NSX400HB1, 75kA/690VAC, 3 полюса, MicroLogic 2.3 изключвателно устройство 400A | Spark & Co
  • 3D
|

СКУ: C40V32D400

Автоматичен прекъсвач, ComPacT NSX400HB1, 75kA/690VAC, 3 полюса, MicroLogic 2.3 изключвателно устройство 400A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Rated operating voltage
    690
  • Width
    140
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    320
  • With integrated under voltage release
    FALSE
  • Type of control element
    EV000154
  • Depth
    110
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • With thermal protection
    TRUE
  • Switch off technique
    EV000101
  • Height
    255
  • Overload release current setting
    160
  • Adjustment range undelayed short-circuit release
    4800

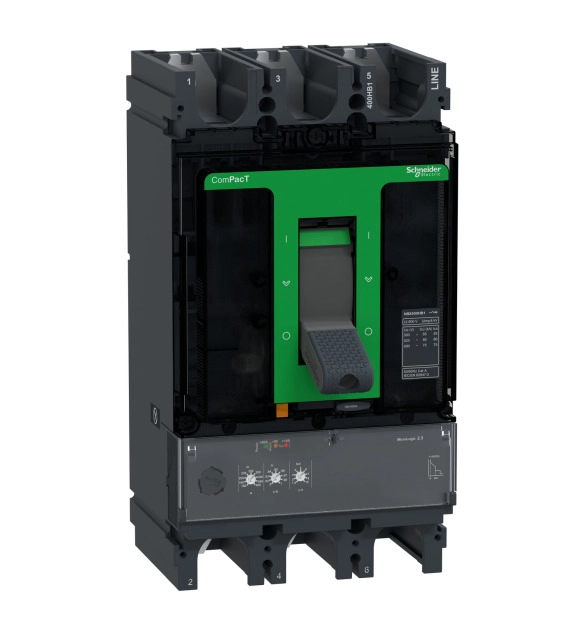

This ComPacT NSX400HB1 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 M trip unit, with 320A rating. MicroLogic 2.3 M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB1 is part of Schneider Electric EcoStruxure Power architecture.
