СКУ: EZC250N3200

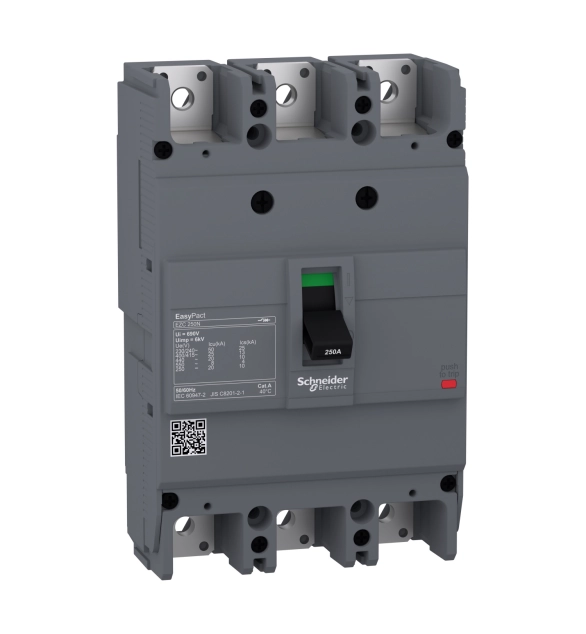

Автом. прекъсвач EAZY PACT EZC250N 25 kA 400 V 3P/3T 200A EZC250N3200

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006405
  • Rated permanent current Iu
    250
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    25
  • Complete device with protection unit
    TRUE
  • Rated voltage
    550
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact
  • Overload release current setting

EasyPact EZC250N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 200A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (105mm x 165mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC250N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
