СКУ: GV3P32

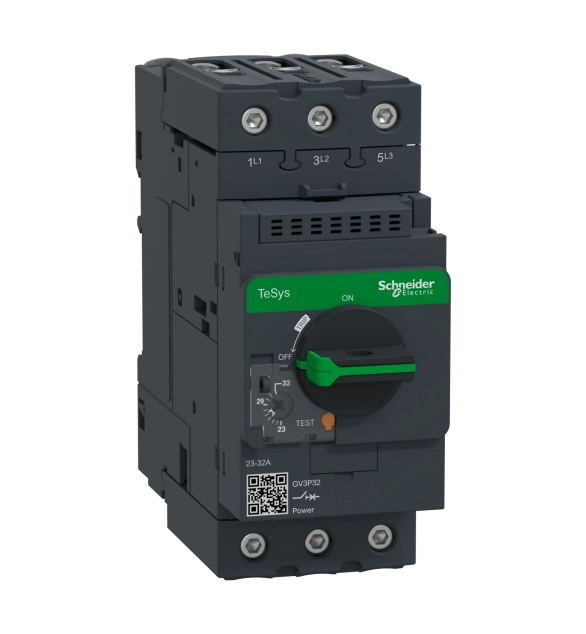

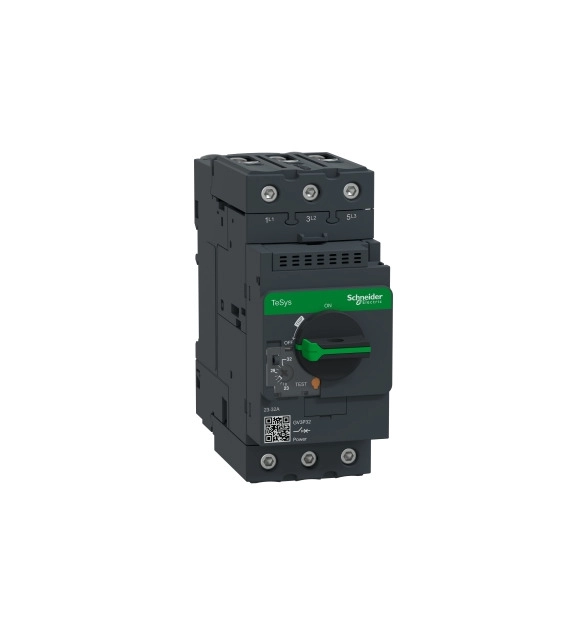

Авт. прекъсвач с термомагнитна Защита TeSys GV3 - 23…32A -EverLink BTR конектори
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
30
-
Degree of protection (IP)
EV006405
-
Type of control element
EV000092
-
With integrated under voltage release
FALSE
-
Width
55
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Depth
136
-
Height
132
-
Rated operation power at AC-3, 230 V
18.5
-
Overload release current setting
48
-
Rated permanent current Iu
65
-
Adjustment range undelayed short-circuit release
910
TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW/400V. It provides a magnetic protection with a tripping level at 15xIn, high breaking capacity Icu 50kA/400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 20 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD380 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
