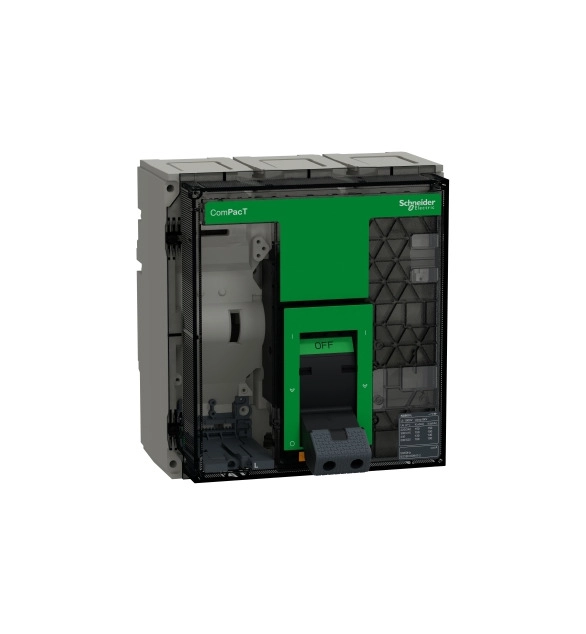

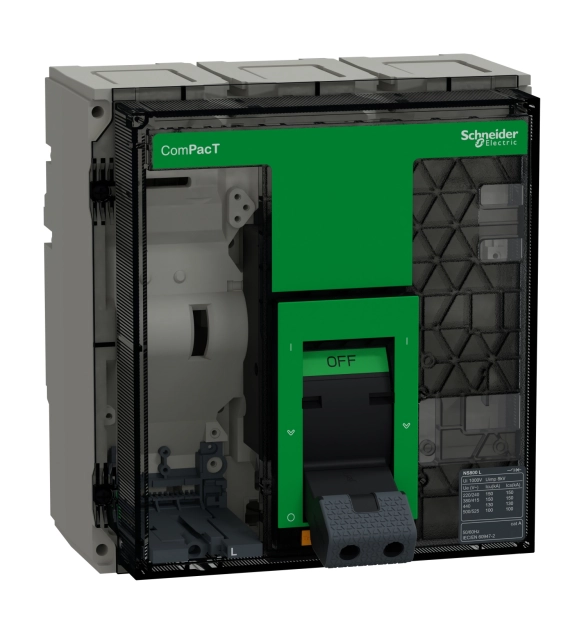

Авт. прекъсвач, ComPacT NS800H, 70kA при 415VAC, 800A, 3P, фиксиран, ръчно управление, без контролно у-во | Spark & Co
  • 3D
  • 3D
|

СКУ: C080H3FM

Авт. прекъсвач, ComPacT NS800H, 70kA при 415VAC, 800A, 3P, фиксиран, ръчно управление, без контролно у-во

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    800
  • Complete device with protection unit
    FALSE
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Device construction
    EV009210
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Position of connection for main current circuit
    EV011047

This ComPacT NSX100NA is a complete 2 poles switch disconnector. It is used to control and isolate electrical distribution circuits and it requires an upstream protection. The operational current is 100A at 415VAC 50/60Hz for AC22A and AC23A utilization categories. The operational voltage is 690VAC 50/60Hz. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimensions for this 2 poles version are 105mm x 161mm x 86mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
