СКУ: 33272

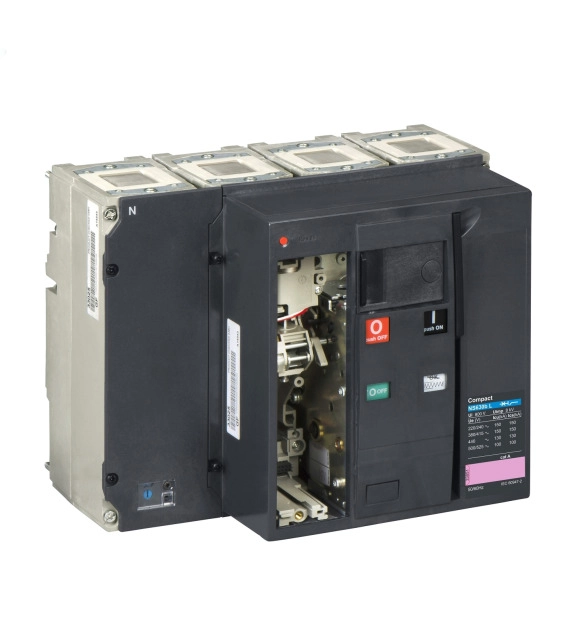

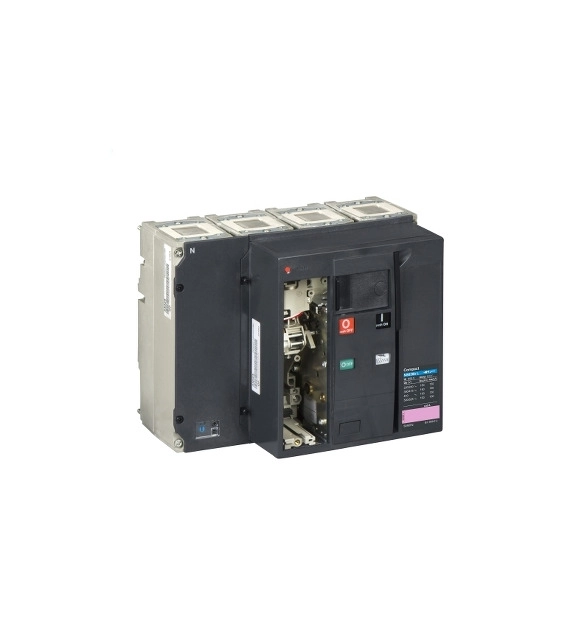

Авт. прекъсвач, ComPact NS630bL, 150kA/415VAC, 630A, фиксиран, електрическо управление, без изключващо у-во, 3P
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Type of switch drive
EV003983
This product is a 3 poles ComPacT NS630bL circuit breaker frame. This device is in fixed mounting mode and is electrically operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. It can be equipped with a variety of optional functions and accessories. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 630A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 150kA rms at 415VAC 50/60Hz. The circuit breaker is electrically operated, it is equipped with a motor mechanism module used for remote opening and closing operation. This product comes with a variety of optional functions and accessories. The dimensions are 224mm (Heigh) x 210mm (Width) x 182mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
