Авт. прекъсвач, ComPacT NS1250H, 70kA при 415VAC, 1250A, 3P, фиксиран, ръчно управление, без контролно у-во | Spark & Co
  • 3D
  • 3D
|

СКУ: C125H3FM

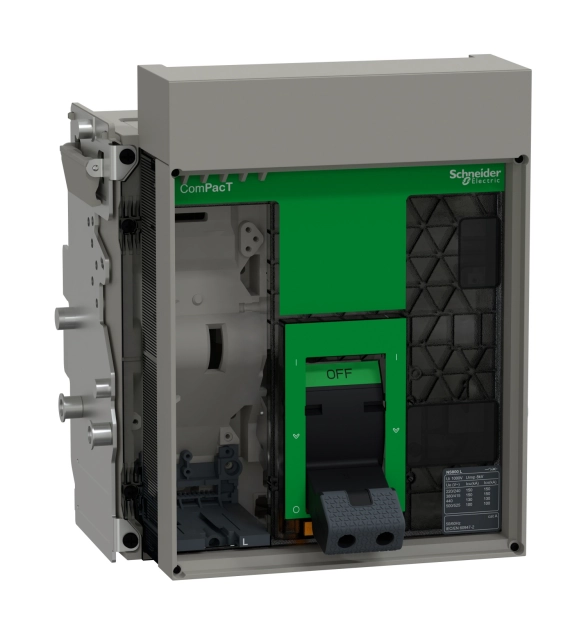

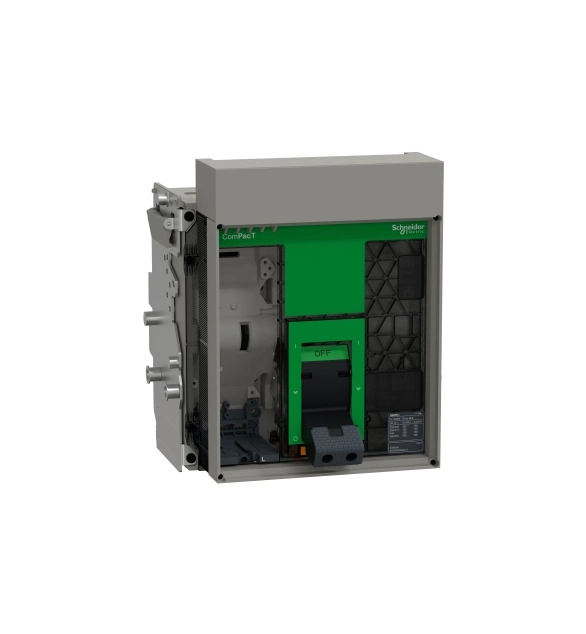

Авт. прекъсвач, ComPacT NS1250H, 70kA при 415VAC, 1250A, 3P, фиксиран, ръчно управление, без контролно у-во

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Complete device with protection unit
    FALSE
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Device construction
    EV009210
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Position of connection for main current circuit
    EV011047

ITA 1c yearly programmable time switch. Weekly or yearly time programming to be distributed over 1 channel. A memory key and a programming kit can be used to duplicate on another ITA or to save the program created by the user. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 1.4-1.9 W depending on the switching status). Operating temperature -30°C to +55°C. Width (9 mm modules): 4. Degree of protection: IP20. Output contact rating 250 V: 16 A cos Phi 1. 6 A cos Phi 0.6. LCD liquid crystal display: Back-lit. Number of switching operations: 300. Minimum switching: 1 s. Switching accuracy: Without antenna: ± 0.5 s per day at 20°C. With antenna: 1 s on 1 million years1 s. Number of channels: 1.
