СКУ: TR25D4R1604TPE

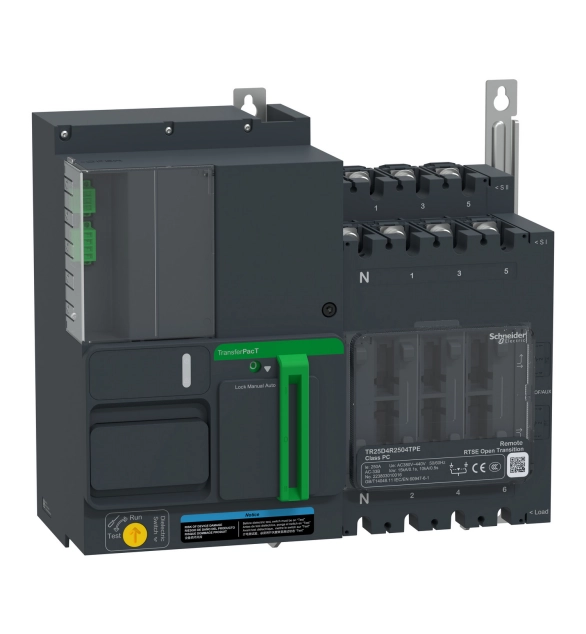

"АВР превключвател, TransferPacT Дистанционен контрол, 160A, 4P, корпус 250A, 400V"
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Degree of protection (IP), front side
EV006405
-
Suitable for floor mounting
FALSE
-
Model
EV000154
-
Suitable for distribution board installation
TRUE
-
Material housing
EV000139
-
Number of poles
4
-
Rated permanent current Iu
160
-
With zero (off) position
TRUE
-
With retraction in 0-position
FALSE
-
Complete device in housing
TRUE
-
Suitable for front mounting
FALSE
-
Type of control element
EV000154
-
Number of auxiliary contacts as change-over contact
3
This TR25D4R1604TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 160A(Ie) at 60℃, with 250A frame. This device can be operated manually by the third party control module. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 370mm(width)x341mm(height)x185.8mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC.
