Aварийно осветление EXW LIGHT, 250LM, IP65 | Spark & Co
  • 3D
|

СКУ: OVA44013

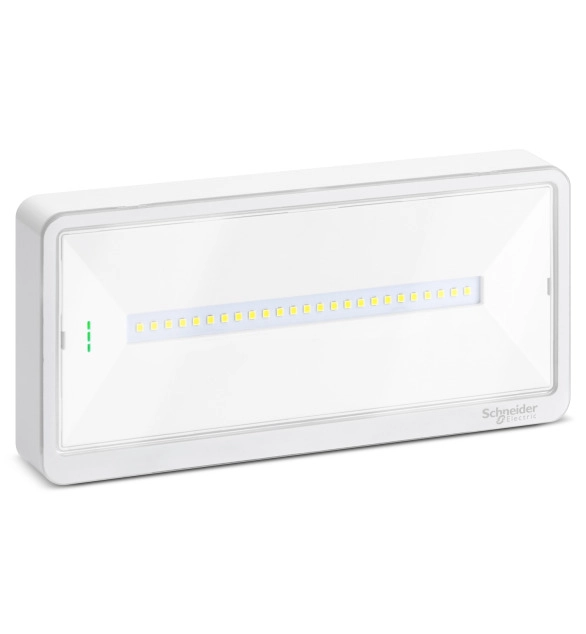

Aварийно осветление EXW LIGHT, 250LM, IP65

  • Brand
    Schneider Electric
  • Lamp holder
    EV000494
  • Number of poles
    2
  • Material housing
    EV000139
  • Degree of protection (IP)
    EV006421
  • Nominal voltage
    230
  • Voltage type
    EV000460
  • Impact strength
    EV006815
  • With light source
    TRUE
  • Lamp type
    EV011515
  • With remote switch connection
    FALSE
  • Power supply system
    EV009693
  • Luminaire with limited surface temperature, sign "D“
    FALSE
  • Conductor cross section
    2.5
  • With remote control
    FALSE
  • Connection type
    EV000415
  • Mounting method
    EV009508
  • With pictogram
    FALSE
  • Monitoring equipment
    EV000494
  • Exchangeable control gear
    FALSE
  • Suitable for number of lamps
    1
  • Colour housing
    EV000202
  • Type of control gear
    EV005787
  • Type of wiring
    EV013935
  • Function
    EV014459
  • Constant light output (CLO)
    FALSE
  • Width
    112
  • Protection class
    EV000583
  • Nominal operation time
    1
  • Wiring system
    EV009683
  • Material cover
    EV006823
  • Colour temperature
    4500
  • Type of indicator
    EV002409
  • Suitable for labelling type
    EV000154
  • Rated life time L70/B50 at 25 °C
    100000
  • Rated ambient temperature according to IEC62722-2-1
    -5
  • Height/depth
    32
  • Recognition distance
    20
  • Battery quality
    EV000154
  • LED nominal current at constant current
    100
  • Max. system power
    1.9
  • Rated luminous flux according to IEC 62722-2-1
    250
  • Length
    229
  • Light distributor
    EV000278
  • Energy efficiency class of the built-in lamp
    EV000154

Exiway emergency lighting range is designed to enhance building safety through smart, connected lighting solutions. It has a visibility distance of 20 meters, with a maximum Luminous flux of 250lm in non-maintained mode. This luminaire drives the building occupants to reach the exit of the building. It must be installed above each exit and emergency exit, in the corridors, above obstacles or to indicate a change of direction or level. Its Ue rated operational voltage is 230VAC at 50/60Hz. The power consumption of the luminaire is 1W in the non-maintained mode. This device can be mounted on the wall or ceiling. The dimensions of the product are (W) 229mm x (H) 112mm x (D) 32mm. It is made up of polycarbonate (PC). The color of the product is white. Operation temperature is from 0°C up to 40°C, and it reaches IP65 degree of protection. The Exiway Light can be transformed into an exit sign by using the accessory kit, which includes a wide beam lens and removable panels. The design is compact, essential and can be personalised with custom details. The product complies with the EN 60598-1, EN 62471, EN 60598-2-22 standards, and it has CE, ENEC product certifications.
