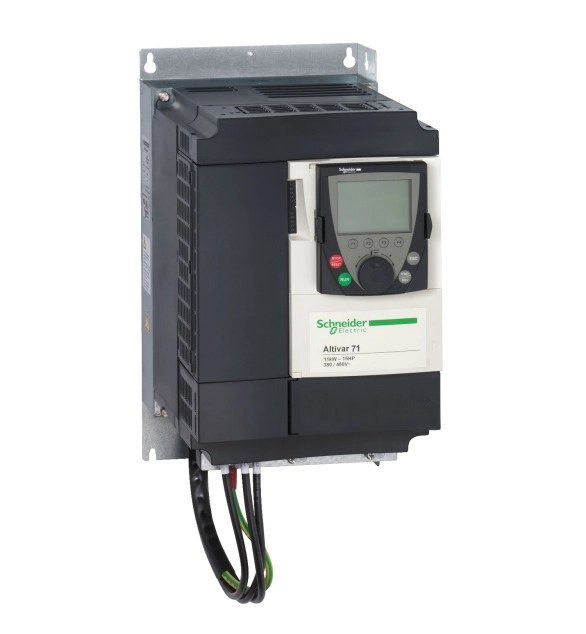

СКУ: ATV71LD33N4Z
ATVLIFT 480V 33A 15KW W O GRAPHIC TERM V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
With control element
TRUE
-
With optical interface
FALSE
-
Number of digital outputs
8
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces serial TTY
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Supporting protocol for CAN
TRUE
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces industrial Ethernet
-
Number of analogue inputs
4
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-232
-
Width
175
-
Height
295
-
Depth
161
-
Supporting protocol for BACnet
FALSE
-
Supporting protocol for PROFIBUS
TRUE
-
Supporting protocol for INTERBUS
TRUE
-
Supporting protocol for DeviceNet
TRUE
-
Type of converter
EV009484
-
Mains frequency
EV008015
-
Number of phases input
EV000069
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Integrated breaking resistance
FALSE
-
Application in industrial area permitted
TRUE
-
With PC connection
TRUE
-
Application in domestic- and commercial area permitted
TRUE
-
Mains voltage
380
-
4-quadrant operation possible
TRUE
-
Max. output voltage
480
-
Max. output at quadratic load at rated output voltage
4
-
Max. output at linear load at rated output voltage
4
-
Max. output frequency
1600
-
Number of digital inputs
20
-
Number of analogue outputs
3
-
Nominal output current I2N
10.5
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with environmental protection directives such as RoHS, WEEE, etc.
