СКУ: A9C70132
ARA автоматично повторно затваряне Аux за iC60 1P-1PN-2P - 4 Prog
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated voltage
230
-
With auto test for earth leakage function
FALSE
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Number of contacts as normally closed contact
2
-
Suitable for max. current main contact unit
63
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Number of contacts as normally open contact
-
Width in number of modular spacings
3.5
-
Rated switch current
1
-
Suitable for max. number of poles main contact unit (total)
2
-
Additional equipment
EV009773

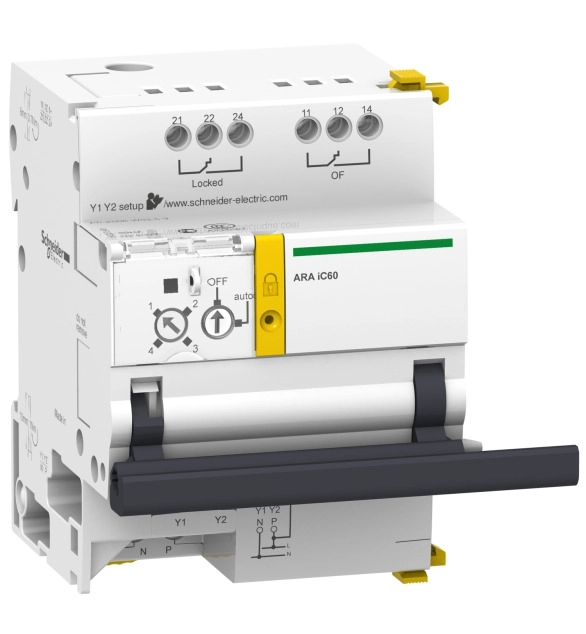

This Acti9 ARA iC60 is an automatic recloser auxiliary is dedicated to iC60 circuit breakers. It performs 4 programs of automatic reclosing of the associated protection device after tripping. It increase the availability of installations without supervision, isolated, hard of access and demanding very great availability by restoring them to operation without intervention by personnel in the event of a transient fault. This device controls 1P, 1P+N, 2P installations. The width in 9mm pitches is 7. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The circuit is secured in a safe position using the padlocking device. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
