СКУ: BMEAHI0812

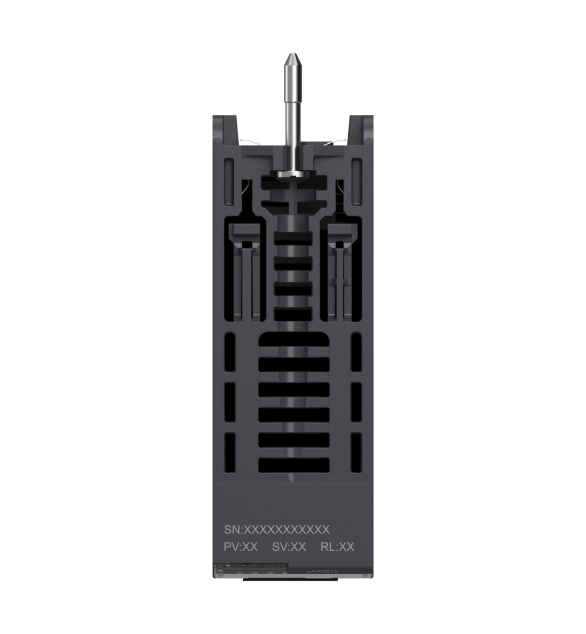

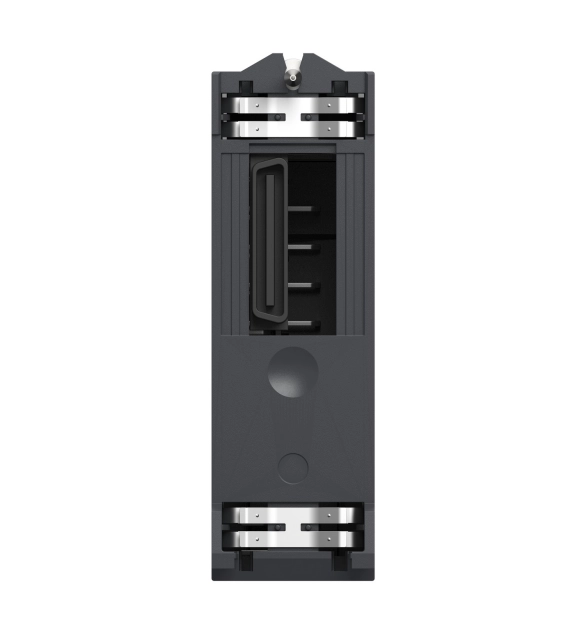

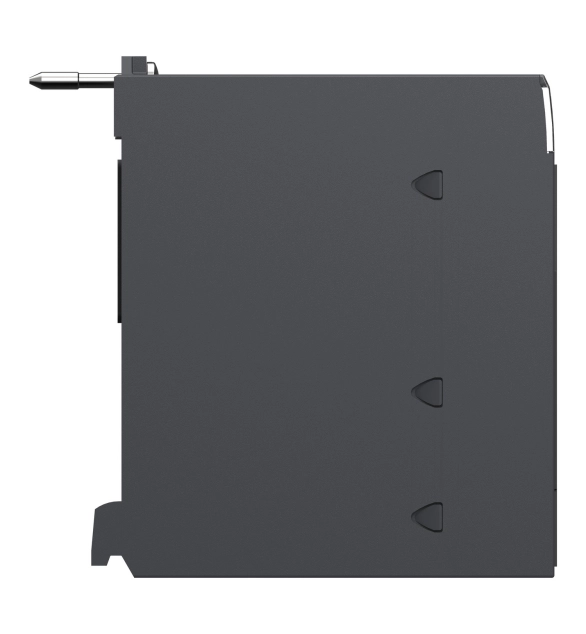

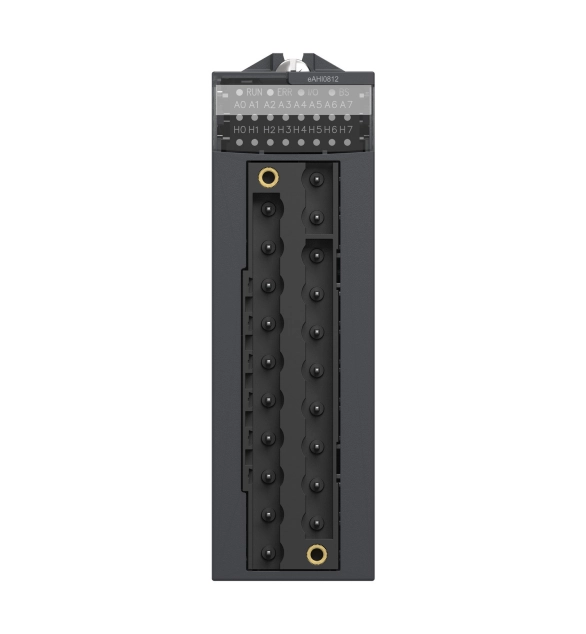

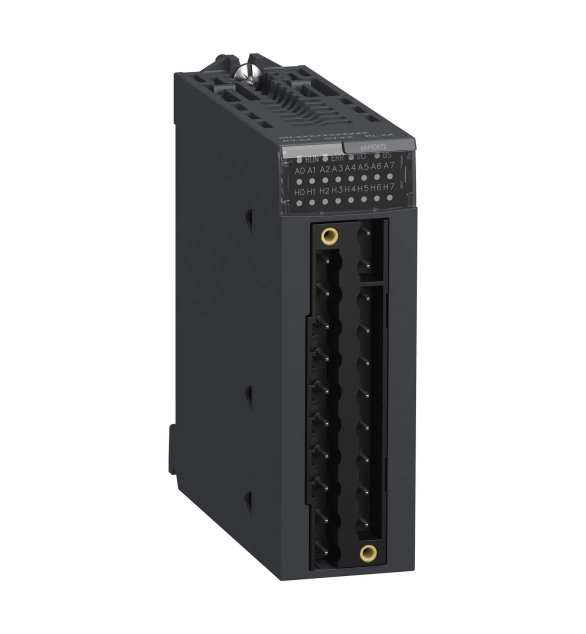

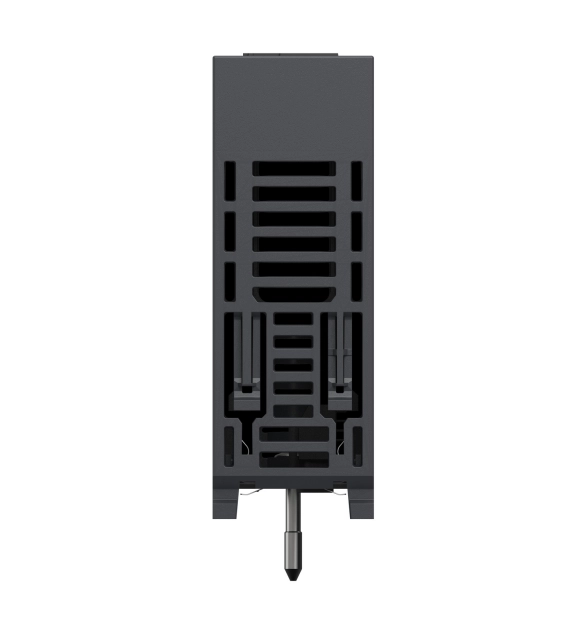

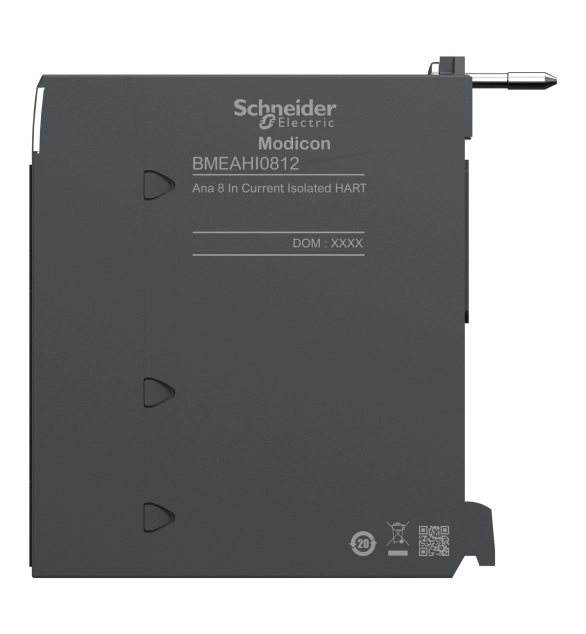

Ana 8 In Current Isolated HART

  • Brand
    Schneider Electric
  • Depth
    160
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Explosion safety category for dust
    EV000494
  • Explosion safety category for gas
    EV000494
  • Appendant operation agent (Ex ia)
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Suitable for safety functions
    FALSE
  • Height
    100
  • Analogue outputs configurable
    FALSE
  • Input, thermocouple
    FALSE
  • Input signal, configurable
    FALSE
  • Input, resistor
    FALSE
  • Input, resistance thermometer
    FALSE
  • Input, voltage
    FALSE
  • Output signal configurable
    FALSE
  • Output, current
    TRUE
  • Input, current
    TRUE
  • Analogue inputs configurable
    TRUE
  • Output, voltage
    FALSE
  • Number of analogue outputs
  • Number of analogue inputs
    8
  • Type of electric connection
    EV003963
  • Width
    29
  • Resolution of the analogue inputs
    15

The Modicon X80 Ethernet Remote IO adapter for dPAC is part of the EcoStruxure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The Ethernet Remote IO adapter supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. The Ethernet Remote IO adapter is compatible with all Modicon X80 racks, power supplies, and Modicon X80 I/Os. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards.
