СКУ: K1F003MLH

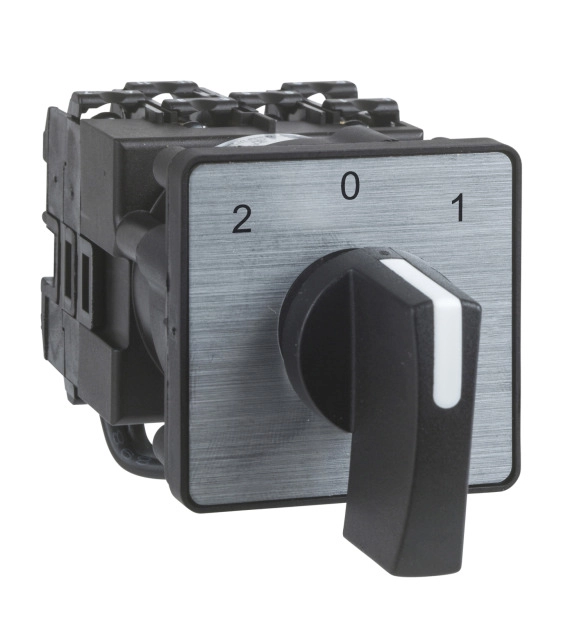

Амперметър пакетен превключвател, с позиция “0”, 12 A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Suitable for distribution board installation
FALSE
-
Suitable for floor mounting
FALSE
-
Rated permanent current Iu
12
-
Number of poles
1
-
Type of control element
EV004095
-
Material housing
EV000139
-
Degree of protection (IP), front side
EV006415
-
With zero (off) position
TRUE
-
With retraction in 0-position
FALSE
-
Complete device in housing
TRUE
-
Rated operation current Ie at AC-3, 400 V
3.3
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Rated operation power at AC-3, 400 V
1.5
-
Suitable for front mounting
TRUE
-
Suitable for intermediate mounting
TRUE
-
Model
EV006495
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 400A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for NSX circuit breaker with rotary handle control (circuit breaker to be ordered separately). It provided 2 right openings for FL21 gland plate to tap-off unit disconnection by rotary operating handle. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to EN/IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
