СКУ: GV2APN02

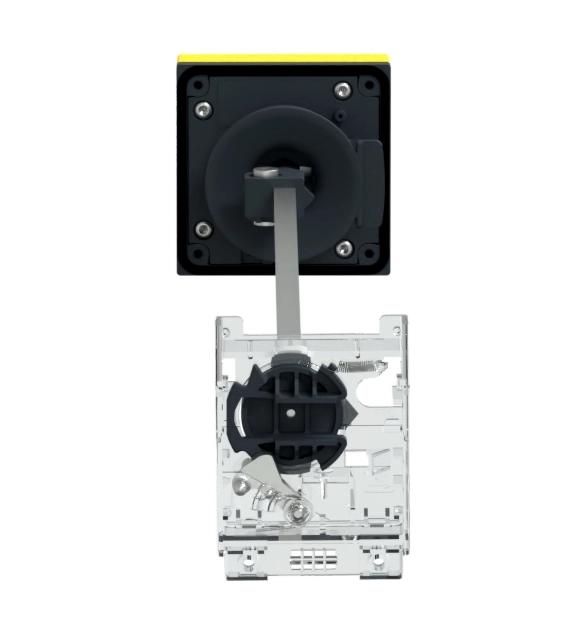

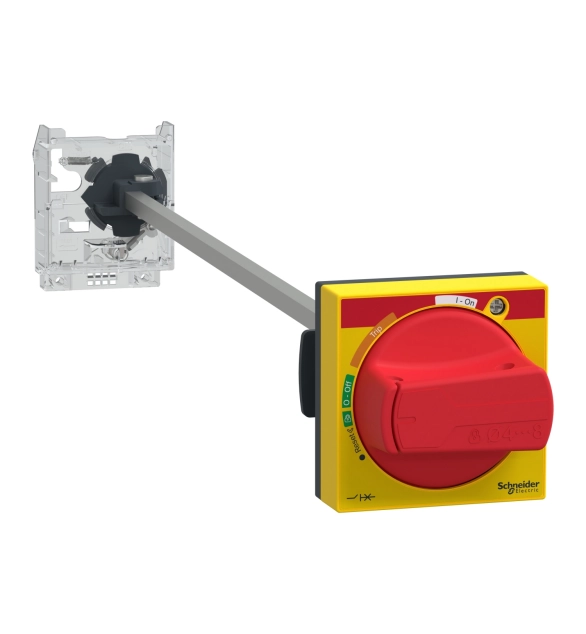

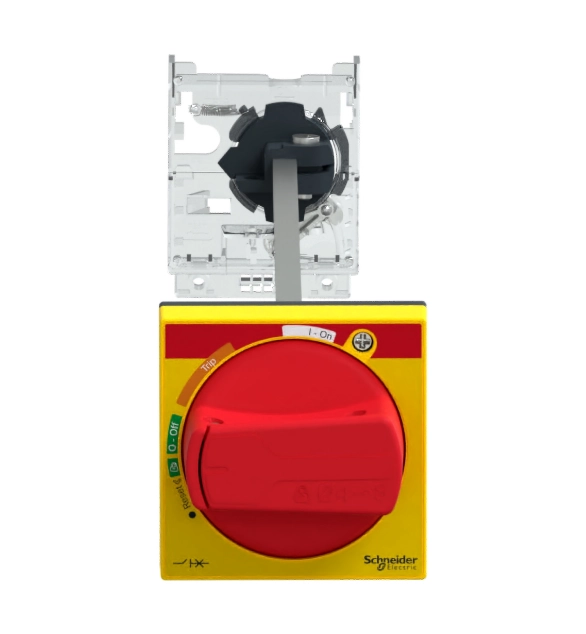

Аксес. за пак. прекъсвач-ръкохватка GV2APN02
-
Brand
Schneider Electric
-
Colour
EV000206
-
With extension shaft
FALSE
-
Suitable for emergency stop
FALSE
-
Suitable for switch disconnector
TRUE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
Suitable for power circuit breaker
FALSE
-
With key lock
TRUE
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for protection of 3-phase motors 5.5-11kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 10-25A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
