СКУ: NTSART0603
AI6 RTD Thermistor SL Mod
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Height
100
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
System accessory
FALSE
-
Depth
69
-
Input, thermocouple
FALSE
-
Input, current
FALSE
-
Input, voltage
FALSE
-
Analogue inputs configurable
TRUE
-
Input, resistor
TRUE
-
Resolution of the analogue inputs
16
-
Width
15
-
Degree of protection (NEMA)
EV000600
-
Input, resistance thermometer
TRUE
-
Input signal, configurable
TRUE
-
Fieldbus connection over separate bus coupler possible
TRUE
-
Supply voltage DC
20.4
-
Number of analogue inputs
6
-
Type of electric connection
EV005753
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other

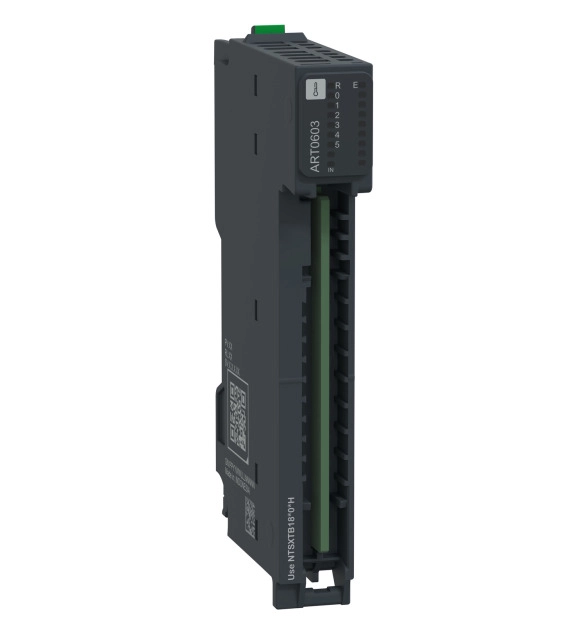

This temperature input module is part of the Modicon Edge I/O NTS range. It features 6 differential temperature inputs, such as thermistor, RTD and resistance, with a 2-3-wire connection. The resolution is 16 bits with Overflow. It is used to measure and monitor temperature in various systems or processes. It functions within a temperature range of minus 20 to 60 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 69mm deep and weighs 0.048kg. It is compatible with I/O modules and mounting accessories. It is sold individually per pack. The module is installed on a base that mounts on a DIN rail. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
