СКУ: A9XPK715
Acti9 VDIS 66 holes 160A and cables
-
Brand
Schneider Electric
-
Mounting method
EV000242
-
Number of poles
4
-
Width
53
-
Depth
95
-
Nominal current
160
-
Contact safe
TRUE
-
Connection type
EV010059
-
Suitable for extra fine-strand conductors without cable end sleeve
FALSE
-
Number of inputs
4
-
Suitable for stranded conductors
TRUE
-
Suitable for fine strand conductors
TRUE
-
Suitable for solid conductors
TRUE
-
Suitable for extra fine-strand conductors
TRUE
-
Suitable for fine strand conductors without cable end sleeve
TRUE
-
Height
730
-
Conductor cross section, output
1.5
-
Number of outputs
66
-
Conductor cross section, input
10

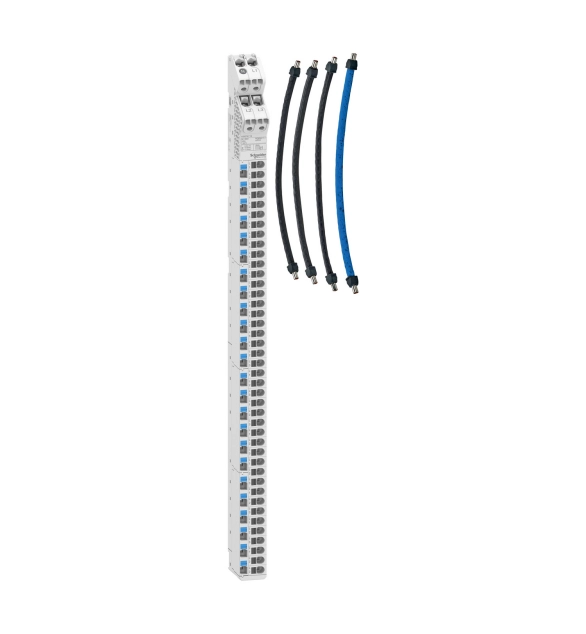

This Acti9 VDIS accessory is a vertical distribution block. 4 flexible cables with a length of 380mm are also provided with the distribution block. It is intended for 3L+N and has 66 outgoers. The distribution block outgoers are 14 holes for each phase and 24 holes for neutral. It comes with staggered terminals to simplify connection. The Ue rated operational voltage is 250VAC or 440VAC. The In rated current is up to 160A. The operating frequency is 50Hz or 60Hz. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The tunnel type terminal connection allows the cables from 10mm² up to 35mm² for supply. The push-in spring terminal connection allows rigid copper cables from 1.5mm² up to 10mm² for distribution. It allows also stranded copper cables from 4mm² up to 16mm², and flexible with or without ferrule copper cables from 1.5mm² up to 16mm². It is DIN rail mountable. The dimensions are (W) 95mm x (H) 730mm x (D) 53mm. The product weight is 2.040kg.
