СКУ: A9N15645
ACTI9 STI 1P-N 20A FUSE 8.5 X 31.5 MM FU
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Lockable
TRUE
-
Mounting method
EV000242
-
For fuse size
EV011649
-
Number of poles
2
-
Width in number of modular spacings
2
-
Concurrently switching neutral conductor
TRUE
-
Built-in depth
44
-
With optical defect indication
TRUE
-
Nominal voltage
400

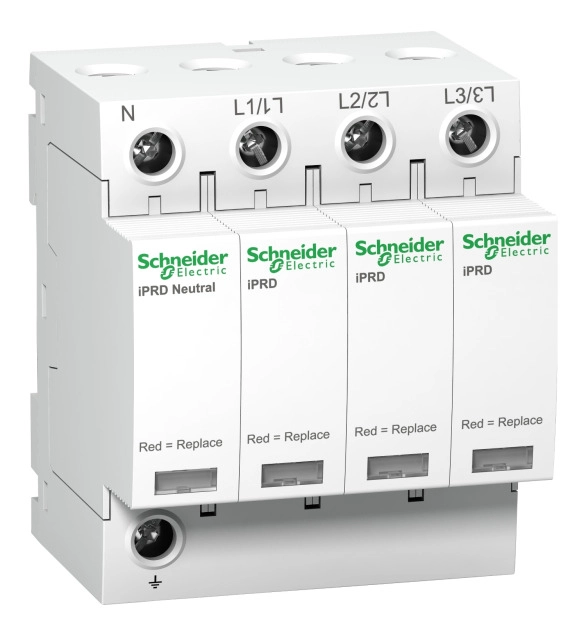

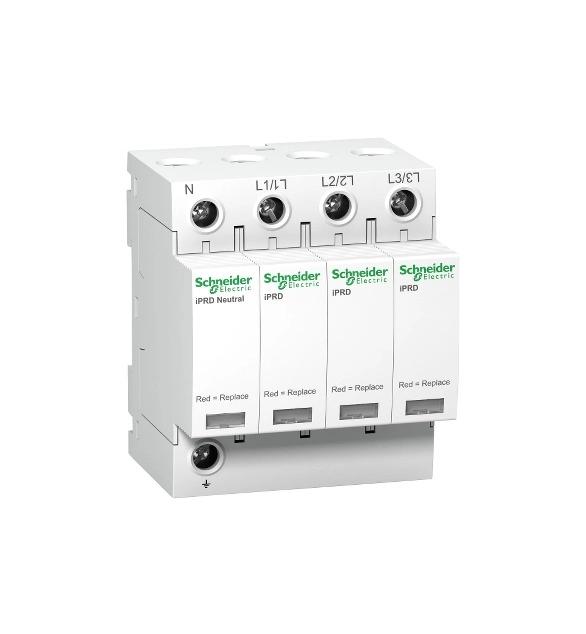

This Acti9 iPRD65r surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.5kV in common mode (N/PE) and in differential mode (L/N). The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The weight is 393g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11and IEC 61643-11 standards.
