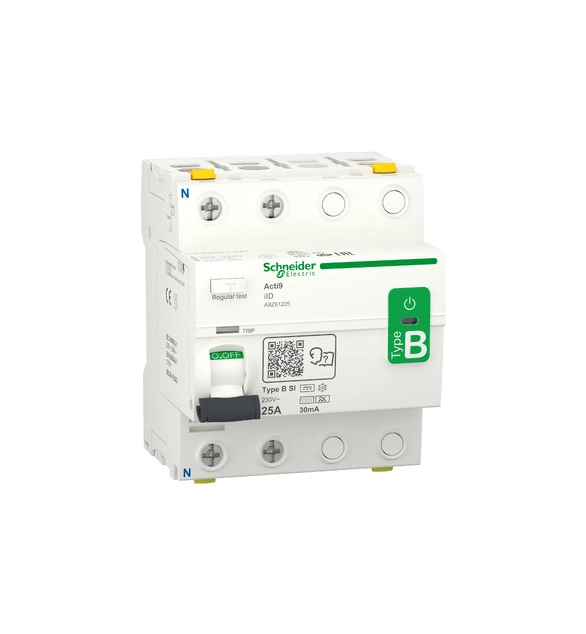

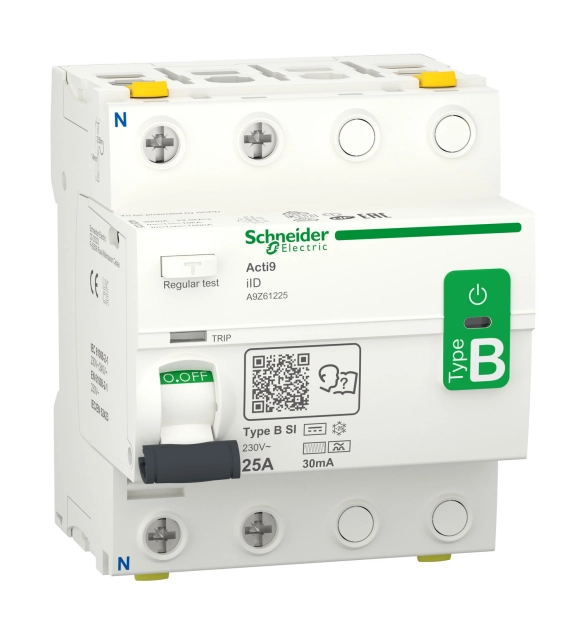

Acti9 iID - Автоматичен прекъсвач за остатъчен ток - 2P - 25A - 30mA - B-SI тип

This Acti9 iID product is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 30mA with a B-SI type protection class. This product protects against electric shock by direct contact. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product complies with IEC/EN 61008-2-1 and IEC/EN 62423 standards. It is certified with CCC certification. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue rated operational voltage is 230VAC. It is DIN rail mountable. The width in 9mm pitches is 8. The pollution degree is 3. The overvoltage category is IV. The product colour is white (RAL 9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 350g. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
