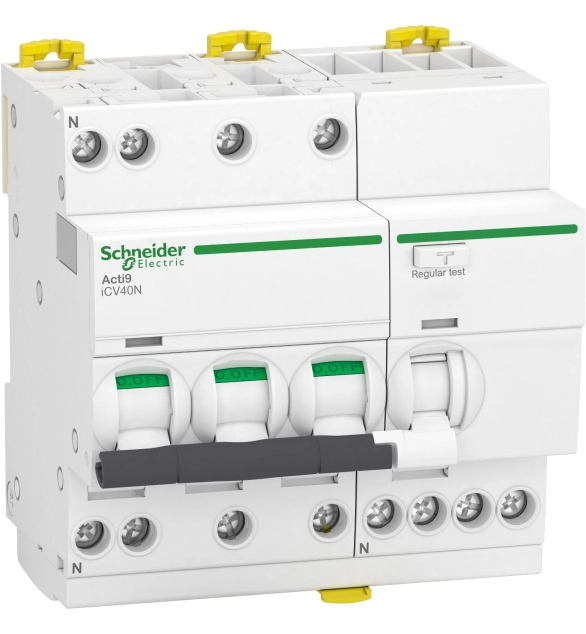

Acti9 iCV40N 3PN B 40A 30mA AC RCBO

Experience optimal protection against both residual currents and overcurrents with Acti9 iCV40N 3P+N residual current breaker with overcurrent protection (RCBO). It has a B tripping curve and operates at a reliable network frequency of 50Hz to 60Hz. Featuring a 30mA earth leakage sensitivity and instantaneous detection to protect from electrical hazards, the Acti9 iCV40 ensures top-tier safety with its type AC earth leakage protection class. Its rated short circuit breaking capacity of up to 6000A at 400VAC, conforming to EN/IEC 61009-2-1 standard. The device provides comprehensive protection against short circuits, cable overload, and electric shock by direct contact. It maximizes the efficiency with its dual VISI-TRIP indicator, minimizing intervention time by displaying earth leakage, overloads, and short circuit faults, allowing for quick identification of issues. Its colour is white and designed for padlocking. This device complies with EN/IEC 61009-2-1 standard. It boasts exceptional durability, with electrical endurance reaching up to 20000 cycles and mechanical endurance extending to 20000 cycles. Its current rating is 40A, and the rated operational voltage is up to 400VAC. The rated insulation voltage is 440VAC, and the rated impulse withstand voltage is 4kV. It can be clipped on a DIN rail, and its width is 10 pitches of 9mm. Additionally, its limitation class 3 enhances the downstream circuit protection cost, while the pollution degree 3 ensures reliable performance in challenging environments. It offers reliable protection with an IP20 rating on its terminals, which is enhanced to IP40 when placed in a modular enclosure. The device operates in temperatures between -5°C and 60°C. Acti9 iCV40 RCBOs are particularly suited to locations with sleeping accommodations, with risks of fire due to high quantities of flammable materials, combustible constructional materials, or to locations where irreplaceable goods are housed. They manage wireless communication with a concentrator or a gateway to collect and process the data, providing circuit monitoring and diagnosis down to load level. They are also compatible with multiple accessories and has the option to add auxiliaries, including remote monitoring or remote control.
