СКУ: A9DH3725

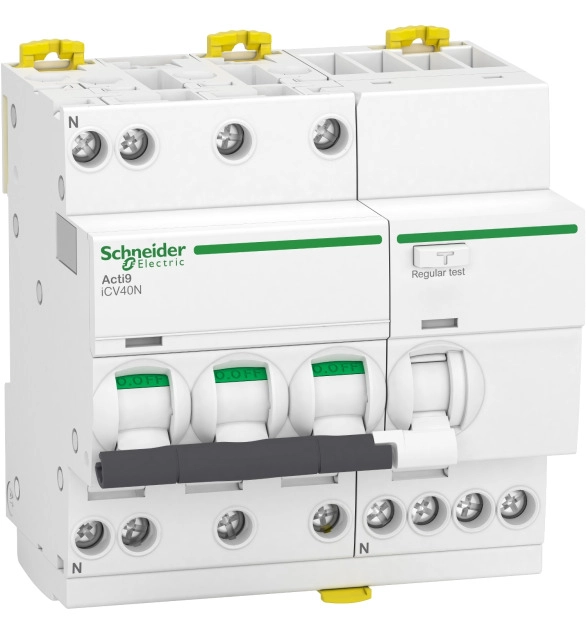

Acti9 iCV40N 3PN B 25A 30mA AC RCBO
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
5
-
Rated voltage
400
-
Concurrently switching neutral conductor
TRUE
-
Flush-mounted installation
FALSE
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Rated current
25
-
Number of protected poles
3
-
Number of poles (total)
4
-
Release characteristic
EV000074
-
Frequency
EV008015
-
With interlocking device
TRUE
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Surge current capacity
0.25
-
Built-in depth
44
-
Voltage type
EV000460
-
Connectable conductor cross section solid-core
1
-
Over voltage category
3
-
Ambient temperature during operating
-5
-
Rated impulse withstand voltage Uimp
4
-
Leakage current type
EV000460
-
Current limiting class
3
-
Disconnection characteristic
EV003978
-
Rated short-circuit breaking capacity Icn according to EN 61009-1
6
-
Rated short-circuit breaking capacity according to EN 61009
6
-
Rated insulation voltage Ui
440
Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40N, 3P+N, 25A, B curve, 6000A, AC type, 30mA
