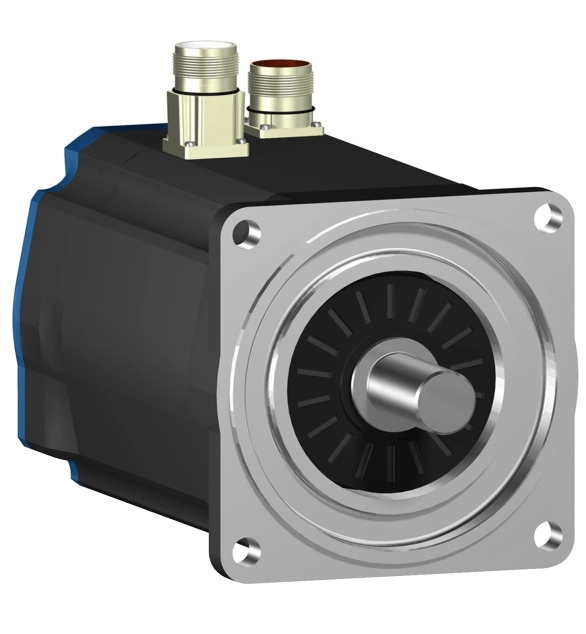

AC серво двигател BSH - 7.8 N.m - 2500 rpm - с шпонка - без спирачка - IP50

This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 6000RPM and IP50 parallel keyed shaft without holding brake. It has a multiturn SinCos Hiperface high-res absolute encoder (131072 points/turn x 4096 turns) giving an angular shaft position precise, less than ±1.3arc min. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with 480V supply voltage, 6.6A continuous stall current, 3.14W maximum continuous power and 6.7N.m to 8N.m continuous stall torque. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable angular connectors for electrical connection. It is an IP50 rated product. Its dimensions are 241mm (Length) x 100mm (Width), with 115mm circle diameter of the mounting hole. It weighs 7.4kg. The entire range conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, is UL and CSA certified. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Lexium 05 meets your requirements for the simplest, most reliable and most cost-effective machines. The high concentrate solution for your machines, this generation of motors and drives gives benefit of powerful solutions to design and optimise machines.
