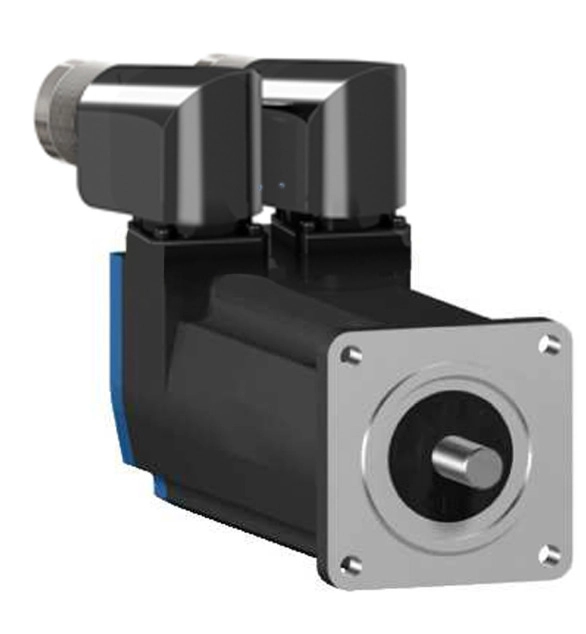

AC серво двигател BSH - 0.9 N.m - 4000 rpm - с шпонка - със спирачка - IP50

This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 9000RPM and IP54 parallel keyed shaft with holding brake. It has a single-turn (131072 points/turn) SinCos Hiperface high-res absolute encoder giving an angular shaft position precise, less than ±1.3arc min. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density. It is a synchronous servo motor with 480V supply voltage, 1.2A continuous stall current, 0.67W maximum continuous power and 0.8N.m to 0.9N.m continuous stall torque. The shaft dimensions are 9mm (Diameter) x 20mm (Length). It is furnished with rotatable angular connectors for electrical connection. It is an IP50 rated product. Its dimensions are 154.5mm (Length) x 55mm (Width), with 63mm circle diameter of the mounting hole. It weighs 1.6kg. The entire range conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, is UL and CSA certified. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 55mm flange mount with a natural convection cooling system. Lexium 05 meets your requirements for the simplest, most reliable and most cost-effective machines. The high concentrate solution for your machines, this generation of motors and drives gives benefit of powerful solutions to design and optimise machines.
