СКУ: C1042D040
4P4T MicroLogic 2.2 40A Изключвателно устройство
-
Brand
Schneider Electric
-
Rated permanent current Iu
40
-
Number of poles
4
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
End value adjustment range undelayed short-circuit release
600
-
Overload release current setting
18
-
Initial value of the undelayed short-circuit release - setting range
600

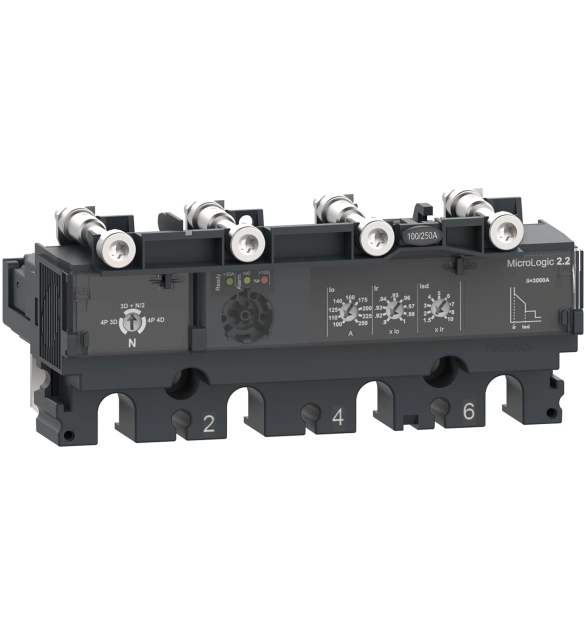

This MicroLogic 2.2 is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
