3P Контактор TESYS E 1NO 37KW 400VAC LC1E80M5 | Spark & Co
  • 3D
|

СКУ: LC1E80M5

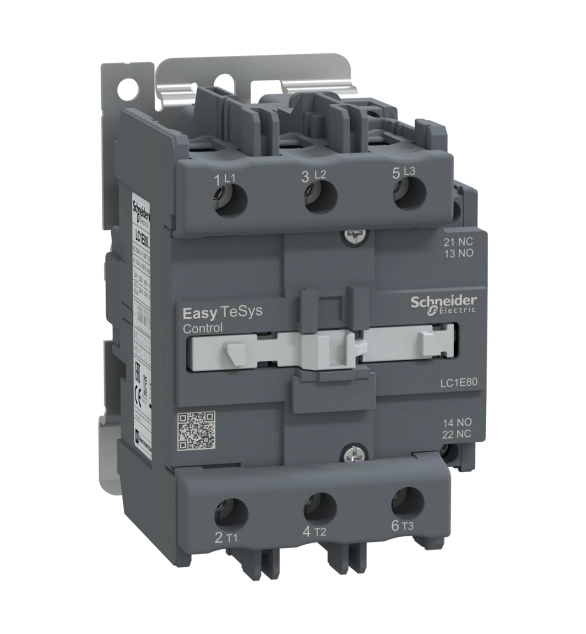

3P Контактор TESYS E 1NO 37KW 400VAC LC1E80M5

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    37
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    110
  • Rated operation current Ie at AC-3, 400 V
    80
  • Number of normally closed contacts as main contact

Easy TeSys Control contactor 3 poles for motor applications up to 80A 45kW/440V. It provides a 220V 50Hz AC coil, 1NO+1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard. It provides standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
