2 simple rails 1 row 400 | Spark & Co
  • 3D
|

СКУ: NSYSQCR4040

2 simple rails 1 row 400

  • Brand
    Schneider Electric
  • Colour
    EV000154
  • Material
    EV000914
  • Height
    40
  • Depth
    27
  • Width
    400
  • Suitable for enclosure building width
    400
  • Suitable for enclosure building depth
    400
  • Model
    EV000788
  • Max. load capacity
    60

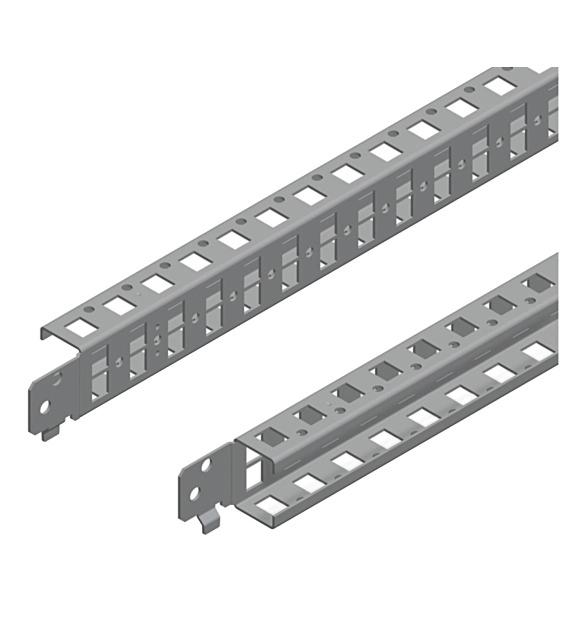

This set of two quick-fixing cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.
