СКУ: XB5AW73731G5

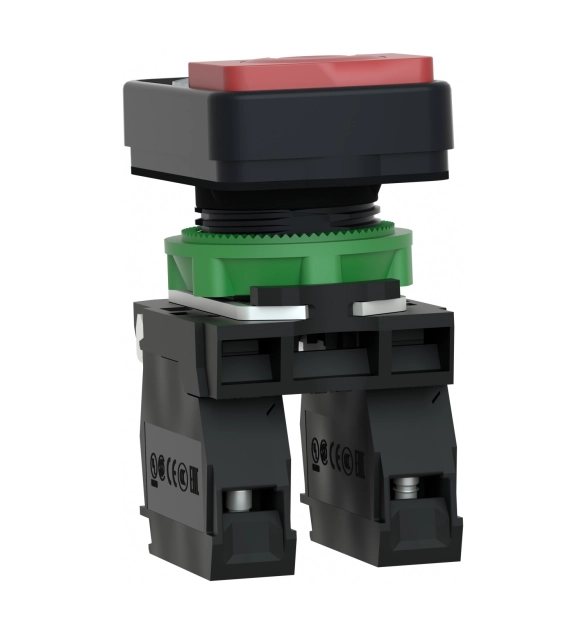

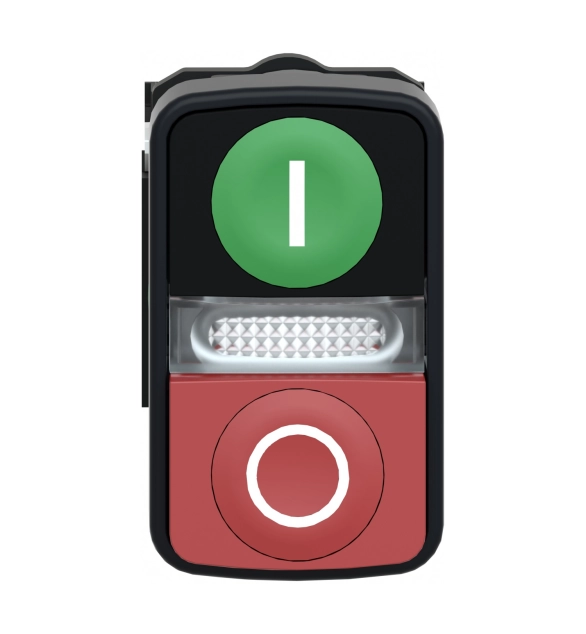

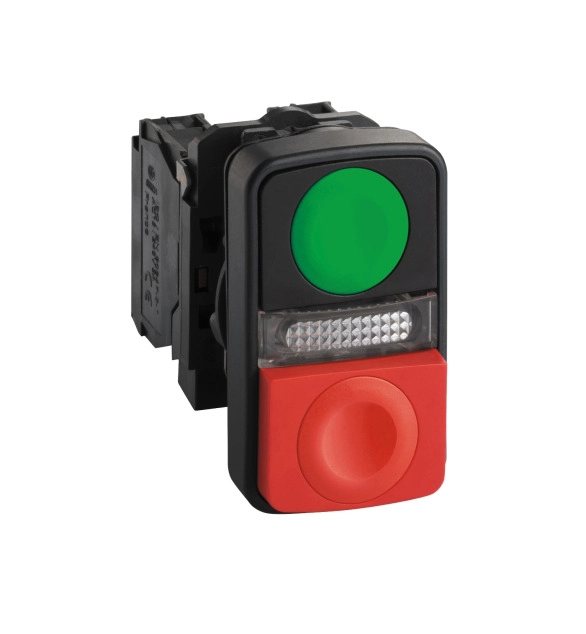

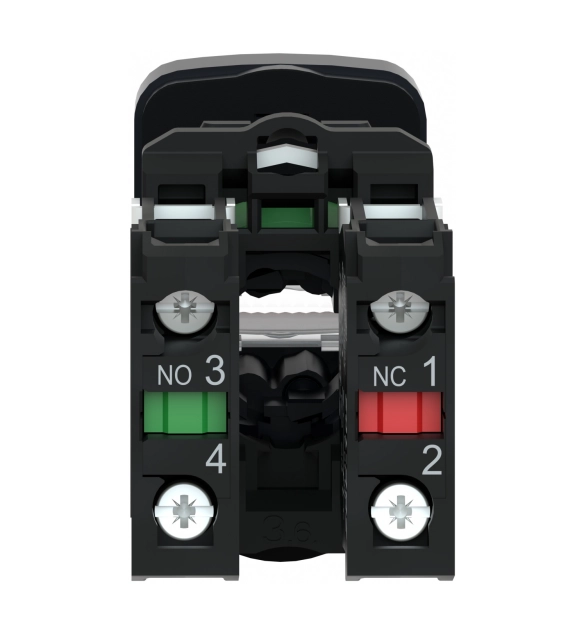

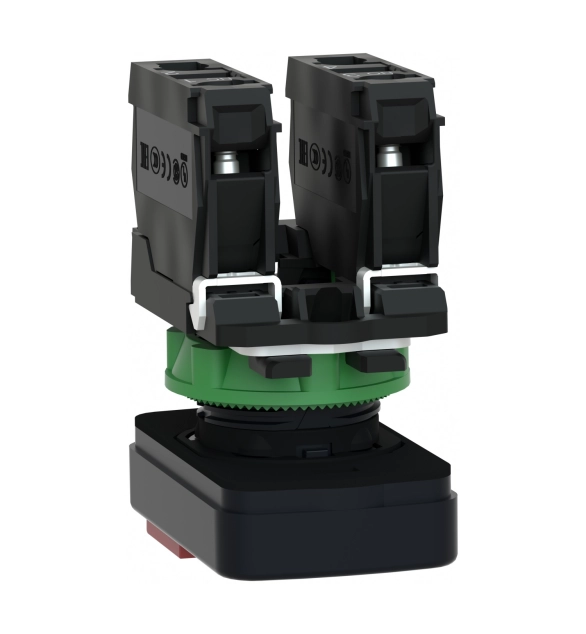

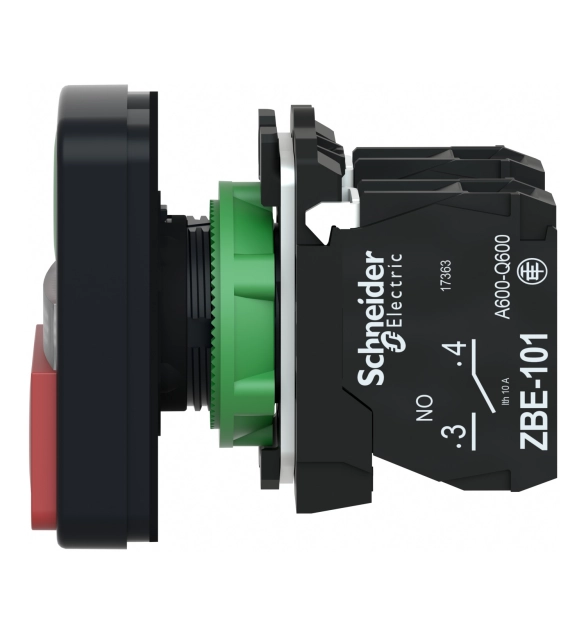

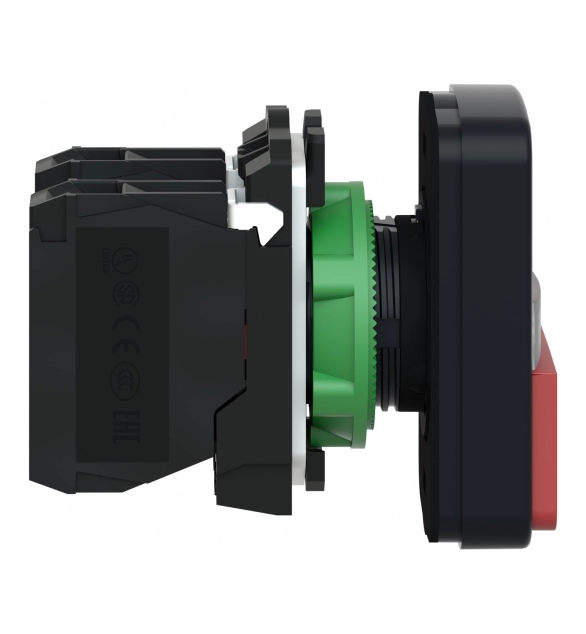

2 Heads PB PLAST GR FLUSH 120V 1NO+1NC
-
Brand
Schneider Electric
-
Hole diameter
22.5
-
Type of electric connection
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Number of revolutions
-
Power consumption
1
-
Resistance
4700
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 8000RPM, an untapped shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 1.78A, a continuous power of 1.05W, and a continuous stall torque of 1.2Nm. Shaft end is IP65 rated, and IP67 with an IP67kit. The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 1.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AD12N4, LXM32SD12N4, LXM32MD12N4, and LXM32CD12N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
