СКУ: 82081
SOCKET UNIKA W/INTERLOCK 16A 2P-E 200-25
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Degree of protection (IP)
EV006421
-
Number of poles
4
-
Voltage according to EN 60309-2
EV011415
-
Identification colour
EV000233
-
Clock hour position
6
-
Military model
FALSE
-
IEC-amperage
16
-
Empty locations on mounting rail
FALSE
-
Model
EV003157
-
Protection
EV000494
-
Switch
EV000551
-
With earth leakage switch
FALSE
-
Type of switch
EV005477

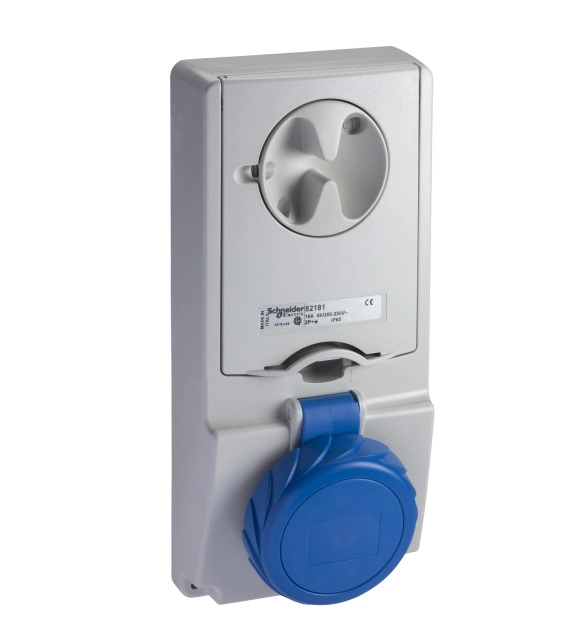

Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+N+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 16A is 25mm for 10mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 380-415VAC at 50/60Hz and its Ie rated operational current is 16A. This interlocked socket with captive screw connection is panel-mounted. The dimensions of the base plate are (W) 103mm x (H) 225mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind. The product complies with the EN 60309-1, EN 60309-2 standards.
