СКУ: NSYSM14640

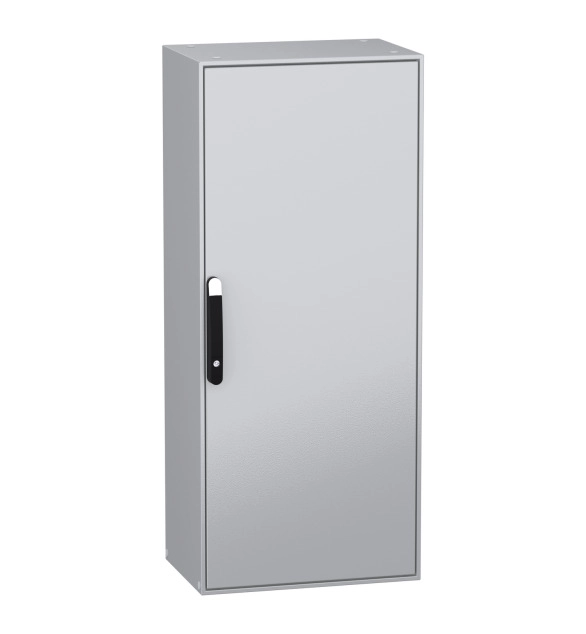

Шкаф SM без мп 1400х600х400
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
Number of doors
1
-
Depth
600
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV022254
-
Width
800
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Height
1800
-
Number of locks
1
-
Max. permissible load of the enclosure according to IEC 62208
4900
-
Max. permissible load of the door(s) according to IEC 62208
588
-
Max. permissible load of the mounting plate according to IEC 62208
3502
PanelSeT S3D is a wall-mounting enclosure for multi-purpose applications It is made of steel with an epoxy-polyester powder surface finish and is grey in colour (RAL 7035) The enclosure has a nominal height, width and depth of 600mm, 600mm and 300mm, respectively It is certified by UL, cUL, GL, LR, BV and DNV and has a NEMA 4X/13 rating It is also IK10 (IEC62262) rated, meaning it can withstand high impacts, and has an IP66 (IEC60529) rating, making it dust and water-resistant The enclosure consists of a body, one plain door, one lock and one cable gland plate The door can be opened up to 120° and can be reversed, allowing easy access to the equipment inside It has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 16,57kg
