СКУ: BMXP3420102CL

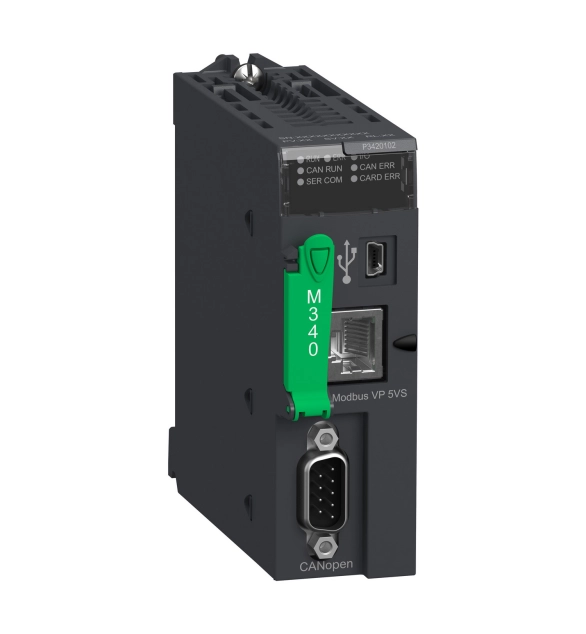

M340 20102 CPU - CardLess
-
Brand
Schneider Electric
-
Depth
160
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Wall mounting/direct mounting
FALSE
-
Height
100
-
Supporting protocol for other bus systems
FALSE
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Explosion safety category for dust
EV000154
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces RS-232
1
-
Redundancy
FALSE
-
Type of memory
EV000506
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Width
35
-
Number of HW-interfaces other
2
-
Number of HW-interfaces USB
1
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Long-Term Evolution (LTE)
FALSE
-
Model
EV000241
-
Number of digital outputs
1024
-
Number of digital inputs
1024
-
Number of HW-interfaces industrial Ethernet
2
-
Processing time (1K, binary operation)
12
-
Memory size
4096
-
Additional program memory possible
FALSE
-
Number of analogue inputs
-
Number of analogue outputs
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Max. number of time switches
-
Number of relay outputs
This performance processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It has a high memory capacity of 4096MB and it can support up to 1024 discrete I/Os and 256 analog I/Os in a multi-rack configuration. It embeds CANopen communication services thanks to its integrated CANopen port. It can be configured so as to be compatible with all commercially available CANopen third-party products. It features a 9-way SUB-D connector for the integrated CANopen master bus. Its current consumtion is 90 mA at 24V DC. It weighs 0.021kg. This performance processor enables CANopen communication. This processor has an IP20 protection rating. It requires a memory card to work (not supplied). The module is delivered in 2 packing units. The processor is to be installed next to the power supply module, and on the main rack in a multi-rack configuration. Modicon products are hightly compatible and allow easy migration. Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.
