Катоден отводител PF 20 20 KA 340V 1P | Spark & Co
  • 3D
|

СКУ: A9L15691

Катоден отводител PF 20 20 KA 340V 1P

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • System configuration TN-C
    TRUE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • System configuration TT
    FALSE
  • System configuration TN-S
    FALSE
  • Signalling at the device
    EV000428
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Short-circuit breaking capacity (Isccr)
    25
  • Nominal voltage AC
    230
  • With remote signalling contact
    FALSE
  • Number of conductors (without earthing)
    1
  • Max. overcurrent protection device, series connection (fuse)
    40
  • Max. overcurrent protection device, parallel connection (fuse)
    40
  • Nominal discharge surge current (8/20)
    5
  • Max. discharge surge current (8/20)
    20
  • Construction size
    EV006931
  • Max. conductor cross section solid (solid, stranded)
    25
  • Max. conductor cross section flexible (fine-strand)
    16
  • Voltage protection level N-PE
    1.1
  • Max. continuous voltage AC
    340
  • Voltage protection level
    1.1

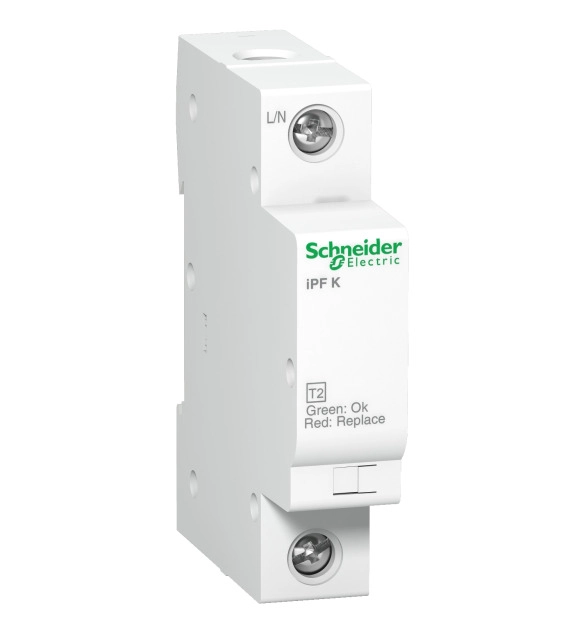

This Acti9 iPF K 20 product is a modular surge arrester. It protects 1P installations. The Imax maximum discharge current is 20kA .The In nominal discharge current is 5kA. The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a medium risk level. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 340VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.1kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 81mm x (D) 69mm. The weight is 125g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.
