СКУ: VW3M8D1AR50

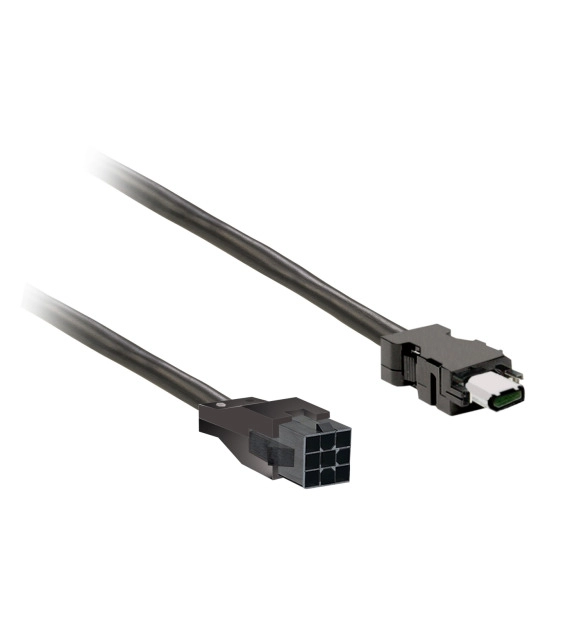

encoder cable 5m shielded, leads connection for BCH2.B/.D/.F, CN2 plug

  • Brand
    Schneider Electric
  • Number of poles
    5
  • Suitable for analogue signals
    FALSE
  • Suitable for input board PLC
    FALSE
  • Suitable for output card PLC
    FALSE
  • Type of electrical connection, field-sided
    EV000154
  • Length
    5
  • Function
    EV005745
  • Suitable for digital signals
    FALSE
  • Type of electrical connection, box-sided
    EV010621

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder. It is equipped with one connector firewire 6-pin (servo drive side) and one connector Molex 9-pin (servo motor side). The encoder cable transmits signals between position sensors of servo motors and their control systems. The cable composition is 5x (2 x 0.13squaremm). It measures 5m long and weighs 1.2kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the encoder connector of LXM28 drives and BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.
