СКУ: EZC400H3400N

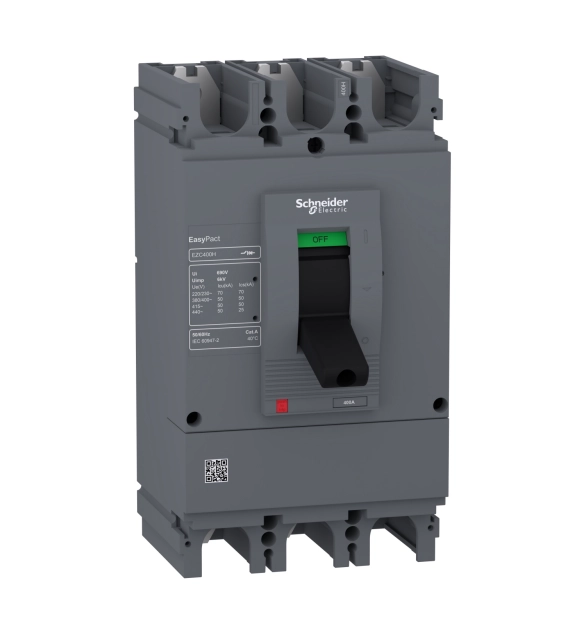

Автоматичен прекъсвач Easypact EZC400H - TMD - 400 A - 3 полюса 3d
-
Brand
Schneider Electric
-
Number of poles
3
-
Device construction
EV009211
-
Degree of protection (IP)
EV006405
-
Rated permanent current Iu
400
-
Type of electrical connection of main circuit
EV008864
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
With switched-off indicator
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With integrated under voltage release
FALSE
-
Motor drive integrated
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50
-
Number of auxiliary contacts as change-over contact
5
-
Number of auxiliary contacts as normally open contact
5
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Number of auxiliary contacts as normally closed contact
5
This is a 400A circuit breaker for EasyPact EZC400H. This product can work below rated operational voltage(Ue) 440VAC at 50/60Hz. The ultimate breaking capacity(Icu) is 50kA at 440V, in terms of complete range Ics=100%Icu(Ics= 50%Icu at 440V. This version of product is designed 3 poles frame with detection on 3 poles, equipped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure,and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle,and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 140mm(width),255mm(height),110mm(Depth).
